5.08mm 300V 10A PA66 PCB Terminal Block Euro Type Raising Series For Automatic Control

5.08mm 300V 10A PCB PA66 Terminal Block Euro Type Raising Series For Automatic Control​

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P or 3P or any poles available, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Black. Other colors also available.

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

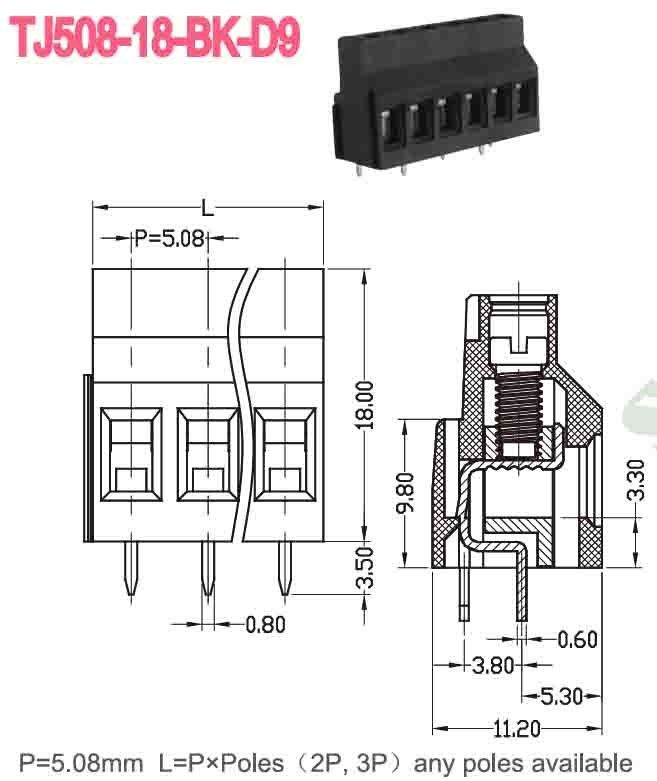

Drawing Photo
